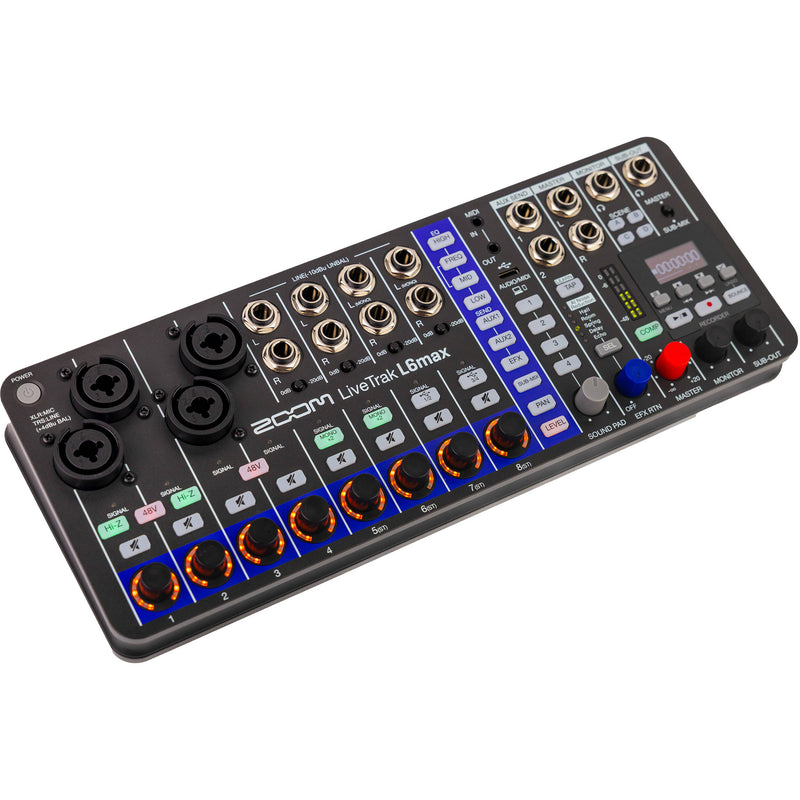

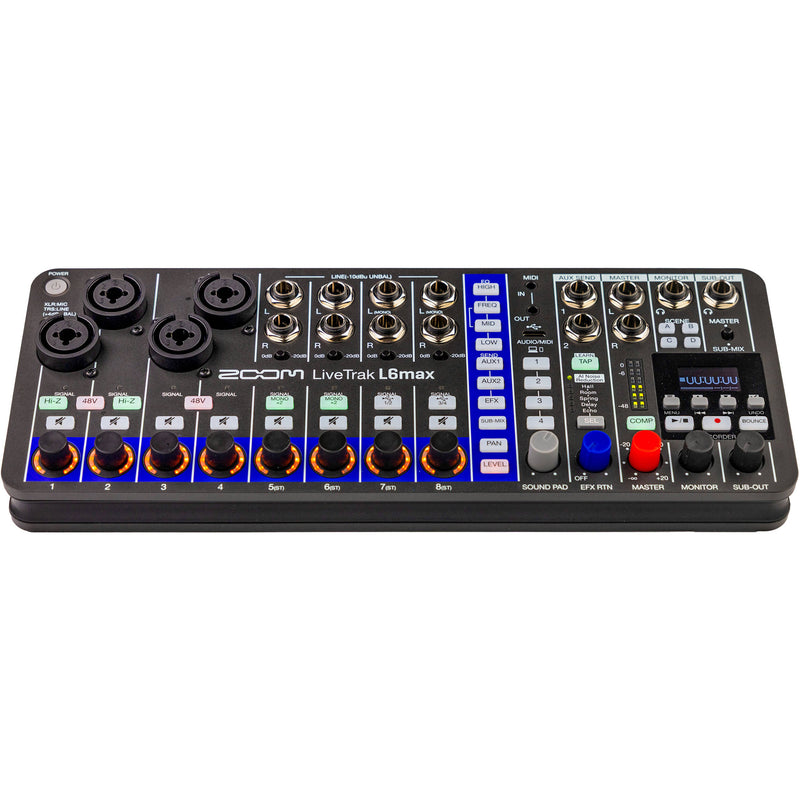

Zoom LiveTrak L6max – 12-Channel Battery-Powered Mixer & Recorder

The LiveTrak L6max gives creators, bands, and podcasters a powerful, all-in-one mixing and recording tool built for on-the-go use. With 12 input channels, 32-bit float recording, AI noise reduction, and multiple monitoring options, it delivers studio-level performance wherever you need it.

Key Features

• 12-channel input setup (4 combo + 8 line): Four XLR/TRS combo preamps (two support Hi-Z), plus eight line-level inputs—ideal for bands, synths, and full setups
• 32-bit float & 14-track recorder: Records 12 individual tracks plus stereo mix to microSD (up to 2 TB), letting you capture wide dynamic range without clipping
• AI Noise Reduction + onboard effects: Removes hum, hiss, and background noise smartly; includes reverb, delay, echo and a master bus compressor for polished sound
• Flexible monitoring & routing: Two headphone outputs and separate sub-out mix let performers or streamers tailor what they hear; AUX sends (pre/post) for effects loops or monitor mixes
• Multiple power options & transportable design: Runs on AA batteries, USB bus power, or a mobile battery pack; optional Eurorack rack ears available for modular setups

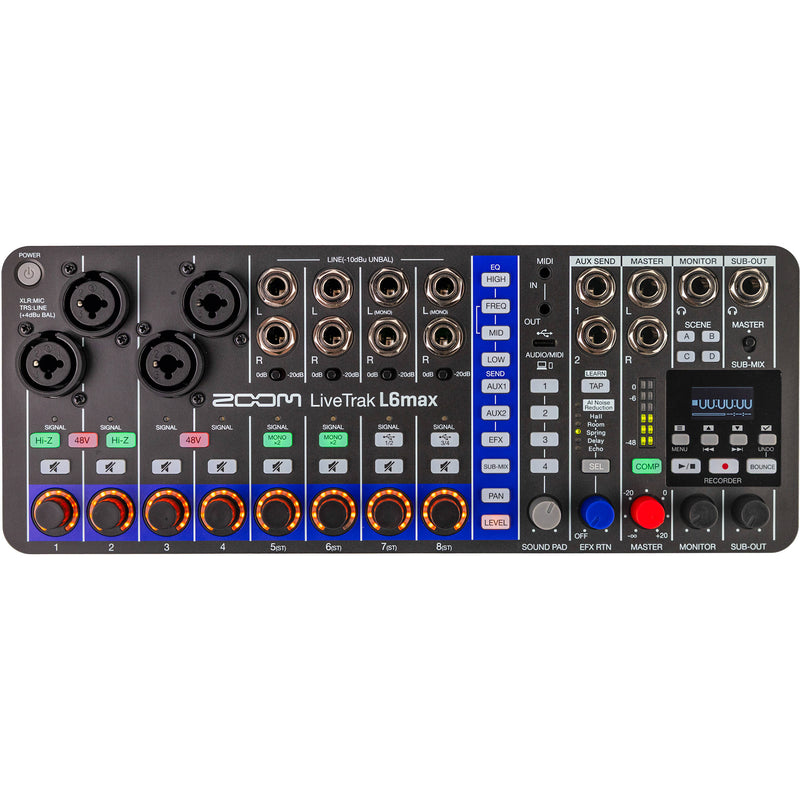

• Clear visual feedback and control: High-contrast OLED display, mute/Hi-Z/phantom-power buttons per channel, 3-band EQ on every channel, –20 dB pad on channels 5-8 for handling loud gear

Customer Benefits

Whether you’re in a rehearsal space, recording a live set, streaming, or producing podcasts, the L6max simplifies workflow without compromising quality. You get clip-free headroom, professional effects, flexible routing for monitoring, and the ability to record everything on microSD while also using it as an interface. It’s a unit that lets you focus on your performance rather than wrestling with gear.

Quick Specs

• Channels: 12 (4 mic/line, 8 line)

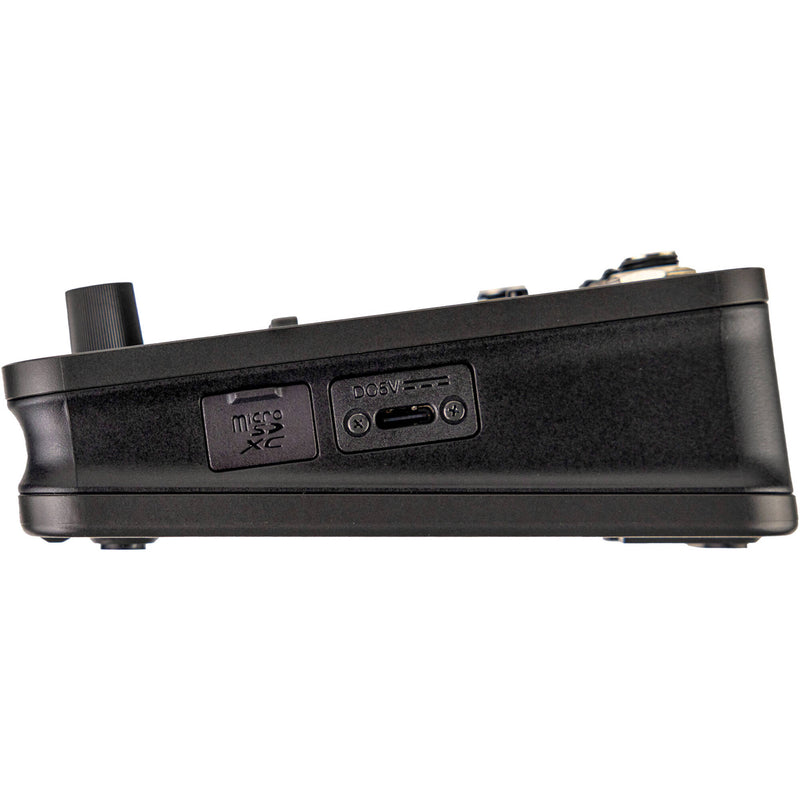

• Recording/format: 14 tracks, 32-bit float, up to 48 kHz WAV to microSD (up to 2 TB)
• EQ per channel: 3-band (low/high shelving, mid peaking)
• Inputs gain pad: Channels 5-8 feature -20 dB PAD for loud signals
• Phantom power: +48 V on the combo inputs where needed
• Outputs: Main balanced outs, monitor, sub-out, two headphone outputs

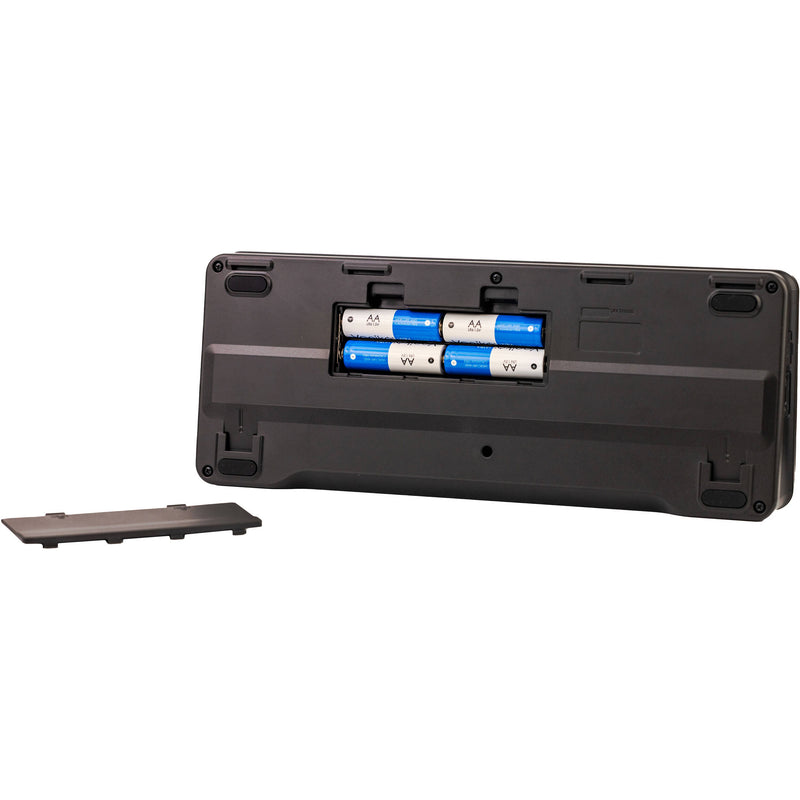

• Power options: AA batteries, USB bus power, mobile battery pack

What’s in the Box

• Zoom LiveTrak L6max unit
• USB-C cable
• Zoom AD-17 power adapter
• Documentation

Use Cases / Ideal For

Great for live bands, electronic musicians, podcasters, streamers, mobile studios, and performance artists who need robust recording and mixing capabilities in a portable format.

Compatibility

Works as a USB audio interface with macOS, Windows, iOS, and Android. Also supports MIDI In/Out, syncing external gear. Records to microSDHC / microSDXC cards. Optional Eurorack rack mount kit for modular setups.

Pros & Cons

✅ Pros:

• Clip-free headroom via 32-bit float on mic channels
• Extensive I/O and flexible monitoring options
• Onboard effects and AI noise reduction reduce need for extra gear/software
• Portable and multiple power sources for field or stage use

⚠️ Cons:

• Larger and heavier than ultra-compact mixers, so less pocketable
• Some workflows may still require external effects or gear for high-end production
• MicroSD card & batteries not included in some markets

The Zoom LiveTrak L6max holds nothing back: it gives you pro-grade mixing, multitracking, effects, and monitoring in a design that travels. If you need power, flexibility, and quality in one mixer/recorder, the L6max delivers.
