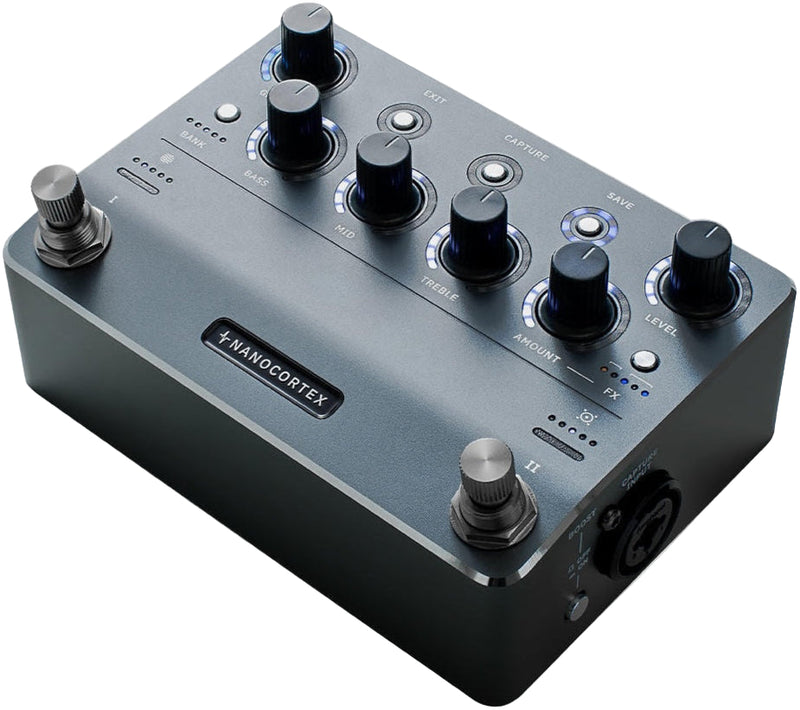

Neural DSP Nano Cortex – Palm-Sized Amp/Capture & Multi-FX Pedal

The Nano Cortex brings studio-level amp capturing, effects, and recording into a compact pedal. Powered by Neural DSP’s acclaimed SHARC DSP architecture, it delivers fan-favorite tones, deep customization, and seamless portability—designed for gigging guitarists and producers alike.

Key Features

• Neural Capture tech: Create precise digital replicas of amps, cabs, and pedals—right on the unit, no laptop needed
• Cortex Cloud integration: Download thousands of community and artist-inspired captures and IRs via Bluetooth and app
• Multi-effects engine: Flexible seven-slot chain includes pre-FX (gate, transpose), capture, IR loader, and post-FX (chorus, delay, reverb)
• Compact DSP powerhouse: Under 1.5 lbs, yet houses 256 Neural Capture slots, 256 IR slots, 64 presets, and a rich palette of effects
• USB-C interface: Acts as a 24-bit/48 kHz audio interface (4 in / 3 out), perfect for recording axe tones or live feeds

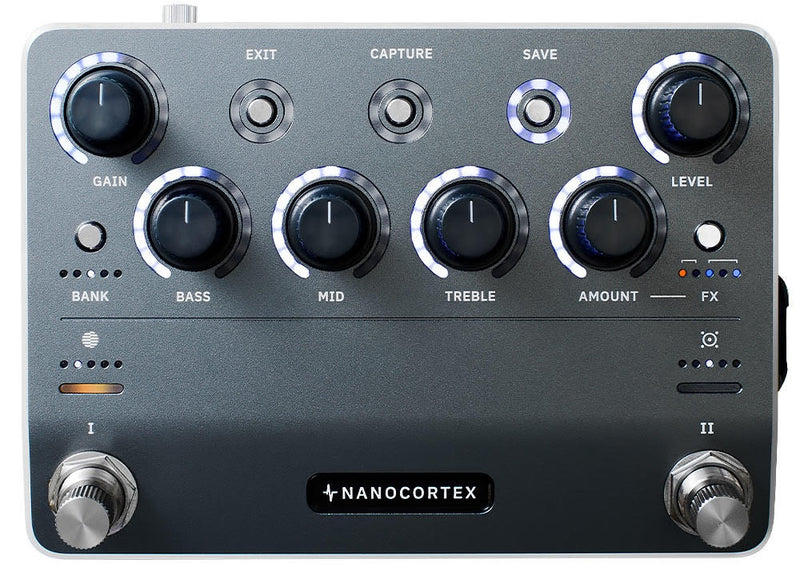

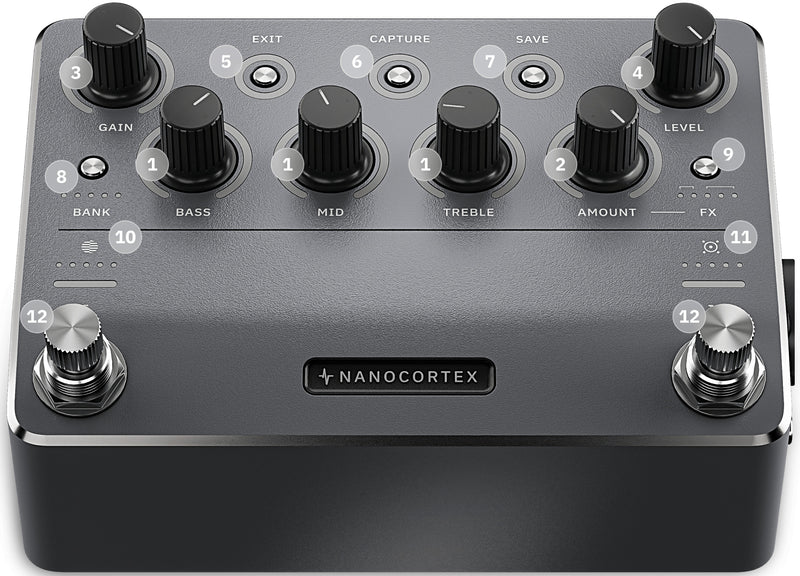

• Stomp pedal form factor: Dual footswitches & tactile knobs deliver fast preset navigation with gapless switching

Customer Benefits

Whether you’re on tour, in the studio, or writing at home, Nano Cortex simplifies your rig without compromising tone. Capture your favorite sounds, tweak them via the app, and roll onstage or into the mix confidently—no amp stack required.

Quick Specs

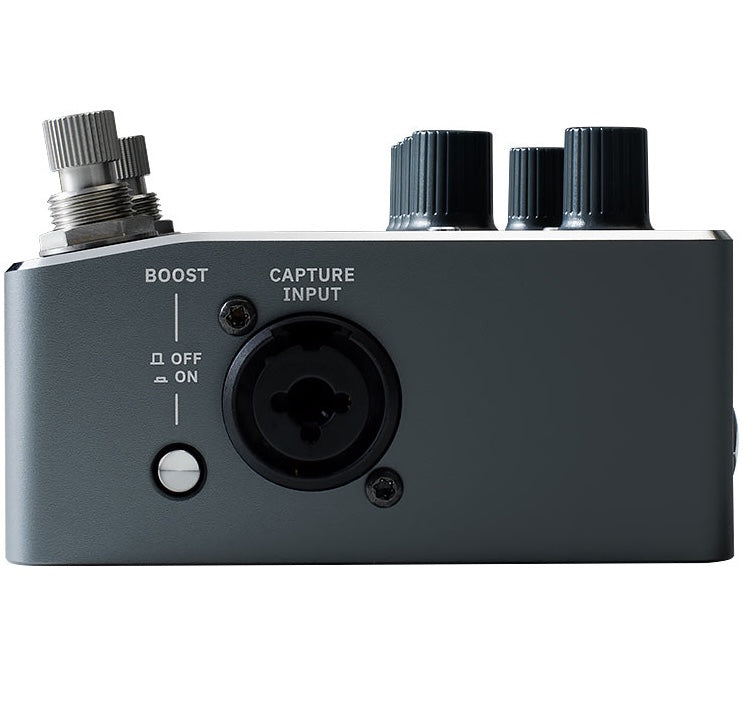

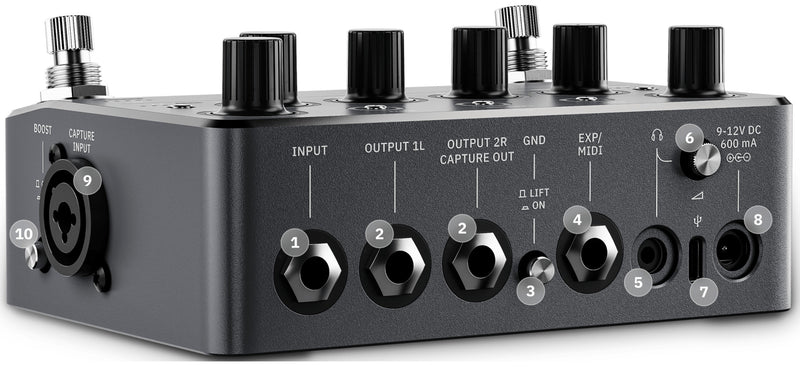

• Inputs: ¼″ instrument, combo XLR/¼″ capture input with +26 dB boost

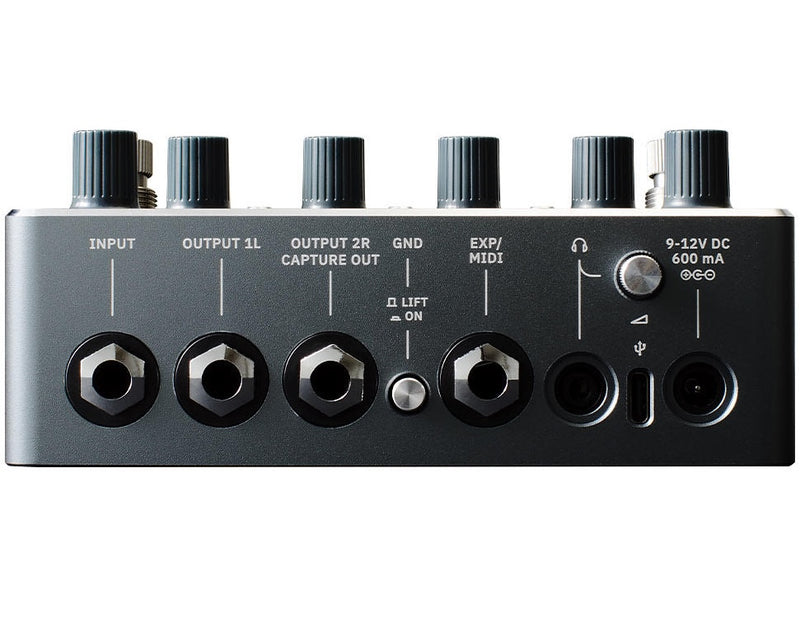

• Outputs: Dual ¼″ stereo outputs (L, R / capture), 3.5 mm headphone jack
• Connectivity: USB-C (audio interface), TRS MIDI/EXP, Bluetooth (app control)
• Slots: 256 Capture slots, 256 IR slots, 64 preset slots
• Weight & Size: ~620 g; 14.4 × 10.3 × 6.2 cm (5.6 × 4 × 2.4″)

What’s in the Box

• Neural DSP Nano Cortex pedal
• USB-C data/power cable
• Quick-start guide

Use Cases / Ideal For

Ideal for guitarists or bassists who perform live, record in the studio, or practice at home—especially those who want amp/cab capture and effects in a portable, powerful layout.

Compatibility

Works with major DAWs on Mac and Windows as an audio interface. Compatible with expression pedals and MIDI gear over TRS. Use the app or Bluetooth for firmware updates, tone downloads, and preset management.

Pros & Cons

✅ Pros:

• Incredible tone capture that rivals larger units
• Compact and pedalboard-ready design
• Robust effects and routing flexibility
• Acts as a full studio audio interface

⚠️ Cons:

• No onboard display—navigation relies on hardware and app
• Lacks XLR outputs or stereo inputs
• USB-C audio may be finicky depending on hub/peripheral setup

The Neural DSP Nano Cortex packs the Quad Cortex power and tone into a pedal that’s ready to amplify your creativity—portable, powerful, and evolving with firmware updates. A smart choice for players who demand flexibility and fidelity in one compact device.
